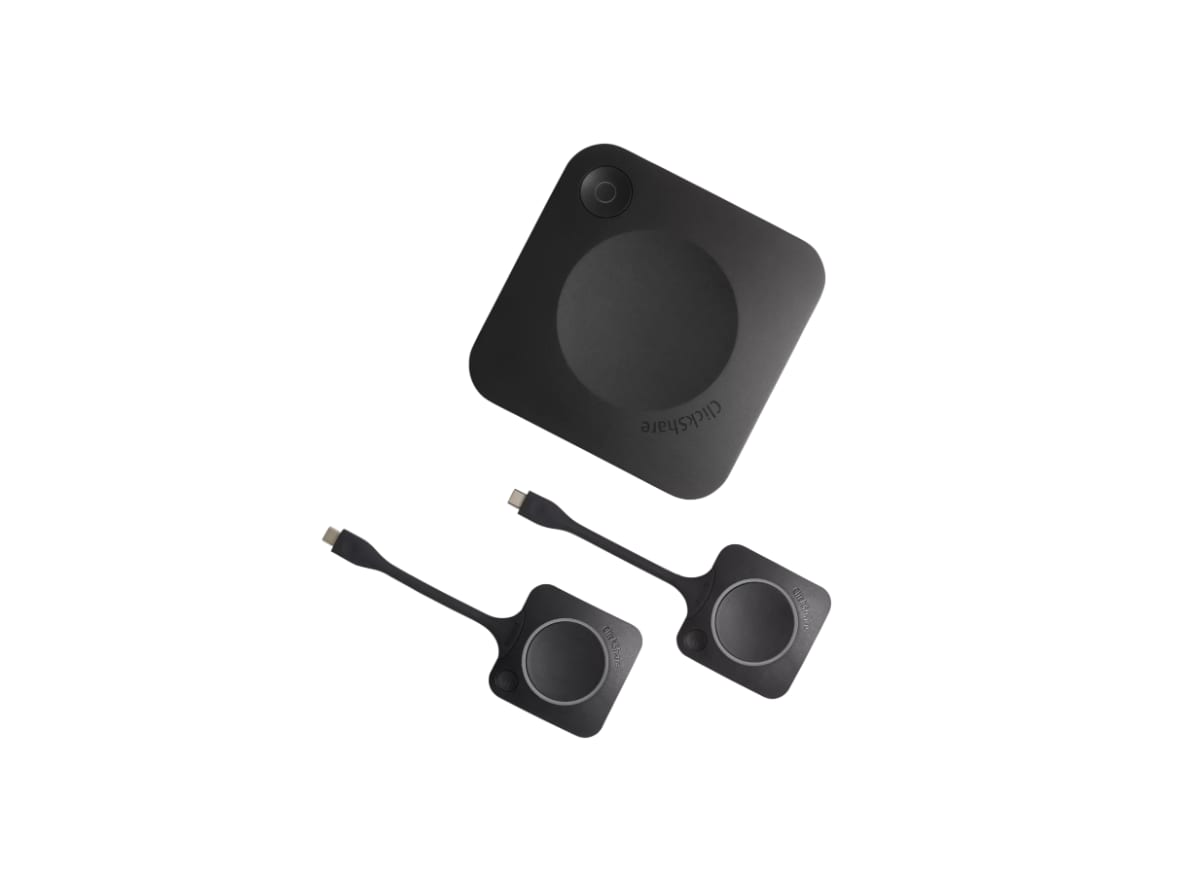

ClickShare CX‑30 Seamless wireless conferencing for small to medium-sized meeting and conference rooms

ClickShare CX‑30 Seamless wireless conferencing for small to medium-sized meeting and conference rooms

  • Interactive features: touchback, annotation and blackboarding
  • Increased collaboration with 2 sources on screen
  • Run video meetings from your laptop with Button or App
  • 100% secure, encrypted and cloud-managed

ClickShare CX-30 enables wireless conferencing in medium-sized meeting spaces. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.

Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.

SKU: cx-30 Brand:

Specifications

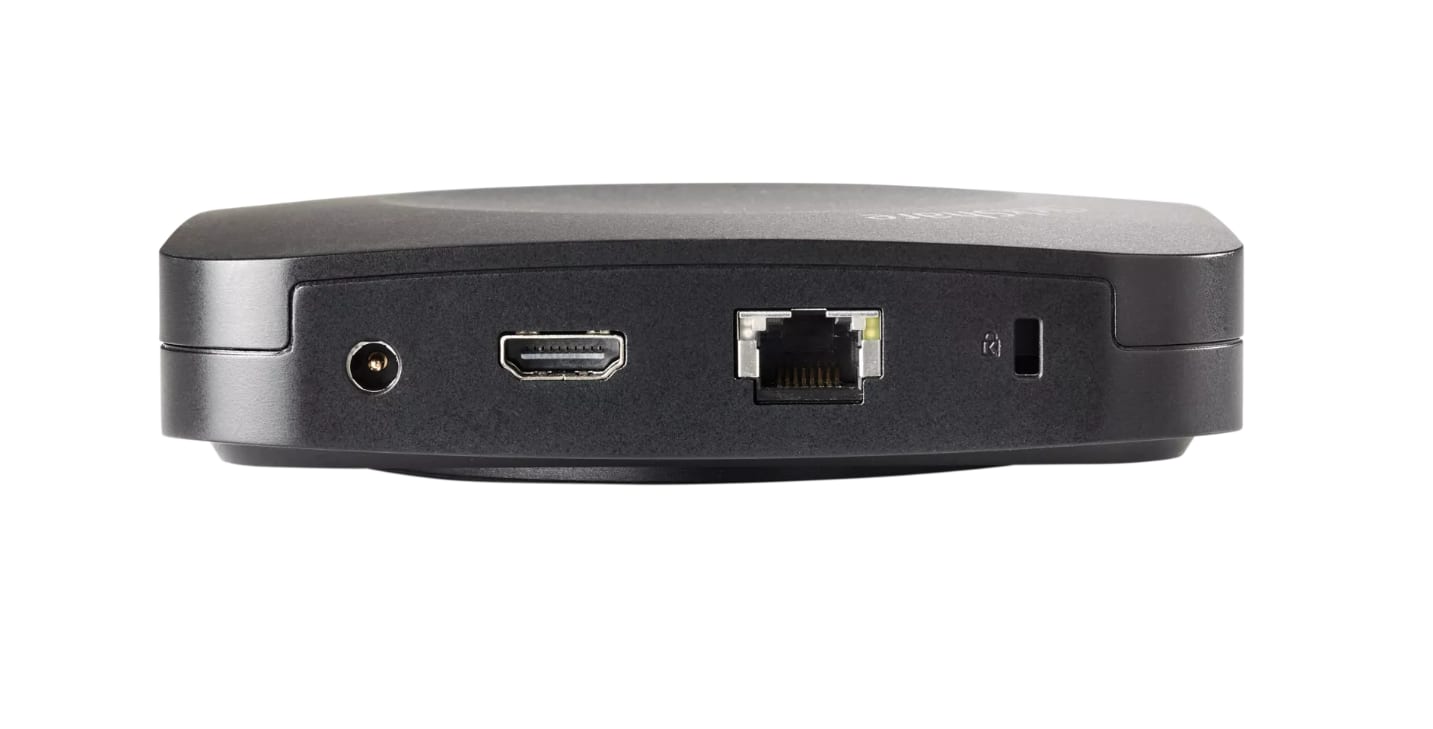

ClickShare Base Unit dimensions
Dimensions (HxWxD)
34 mm x 135 mm x 135 mm
Power supply
Standard 110/220 V AC plug or USB-C (only Gen2)
Power consumption
Operational: 5-10W, 24W Max
Weight
900 gr
General specifications
Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)
System requirements
For a smooth experience with Microsoft Teams or Zoom
Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mojave latest build
Recommended: Intel i5 4-core processor / 8GB RAM / OS:Windows 10 latest build or Mac OS latest build
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
Audio output
USB, HDMI
USB
1 X USB-A, 1 X USB-C

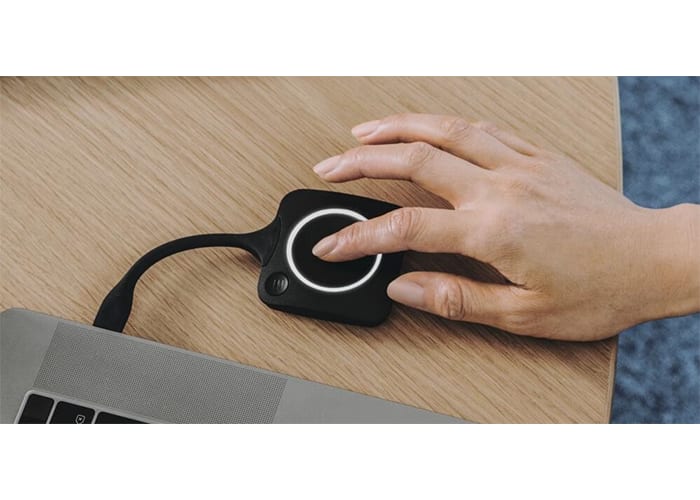

ClickShare Buttons
2
ClickShare App
Desktop & Mobile
Native protocols
Airplay, Google Cast, Miracast
Maximum number of simultaneous connections (with Buttons and/or App)
32
Noise Level
Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Authentication protocol
WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach
Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections
1x Ethernet LAN 1Gbit
1x USB-C 2.0 (front); 1x USB-A 2.0 (front) – only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
Temperature range
Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system
Kensington lock
Certifications
FCC/CE
Touch screen support & Interactivity
Yes
Wireless conferencing
via App or Button
Local view
Yes
Network connection
LAN & WiFi
Management and reporting
Yes
Warranty
1 year standard. 5 years coverage via SmartCare
