Church Hearing Loop Systems

3 Monkeys Audiovisual can design, install and commission your induction loop system. This may be a simple perimeter loop or single array or may require a more complex design such as a low loss or cancellation loop. Whether simple or complex, an experienced designer and installer should always be engaged to ensure you achieve the best possible result within your Church or House of Worship.

How do induction loops work?

An induction loop system transmits an audio signal directly into a hearing aid via a magnetic field, greatly reducing background noise, competing sounds, reverberation and other acoustic distortions that reduce clarity of sound.

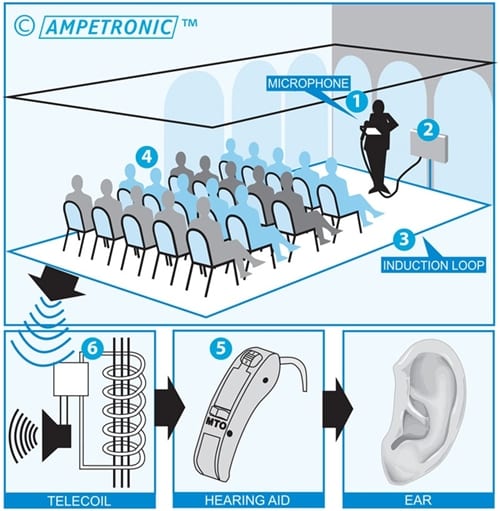

Audio Inputs 1, either from an existing audio source such as a P.A. system or from dedicated microphone inputs feed an audio signal into an Induction Loop Amplifier 2. The amplifier drives a current into a Loop 3 or series of loops. As the current flows through the cable it creates a Magnetic Field 4 in the required area – careful loop and amplifier design ensures that the vertical component of the field is even and free of dropouts and dead zones wherever the user might be. Inside most Hearing Aids 5, a small coil known as a Telecoil 6 picks up the magnetic field signal, which is amplified into a high quality audio signal delivered directly to the ear of the hearing aid user.





Description

3 Monkeys Audiovisual can design, install and commission your induction loop system. This may be a simple perimeter loop or single array or may require a more complex design such as a low loss or cancellation loop. Whether simple or complex, an experienced designer and installer should always be engaged to ensure you achieve the best possible result within your Church or House of Worship.

Types of loops shown below:

perimeter loop designsingle array cancellation loop designlow spill phased array loop designlow loss phased array design
