ClickShare CX‑50 High-end wireless conferencing for large meeting spaces and boardrooms
ClickShare CX‑50 High-end wireless conferencing for large meeting spaces and boardrooms
- Interactive features: touchback, annotation and blackboarding
- Increased collaboration with 2 sources on screen
- Advanced network (dual Wi-Fi) and AV integration
- HDMI input for high-quality content sharing
- 100% secure, encrypted and cloud managed
ClickShare CX-50 enables wireless conferencing in large meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
Specifications

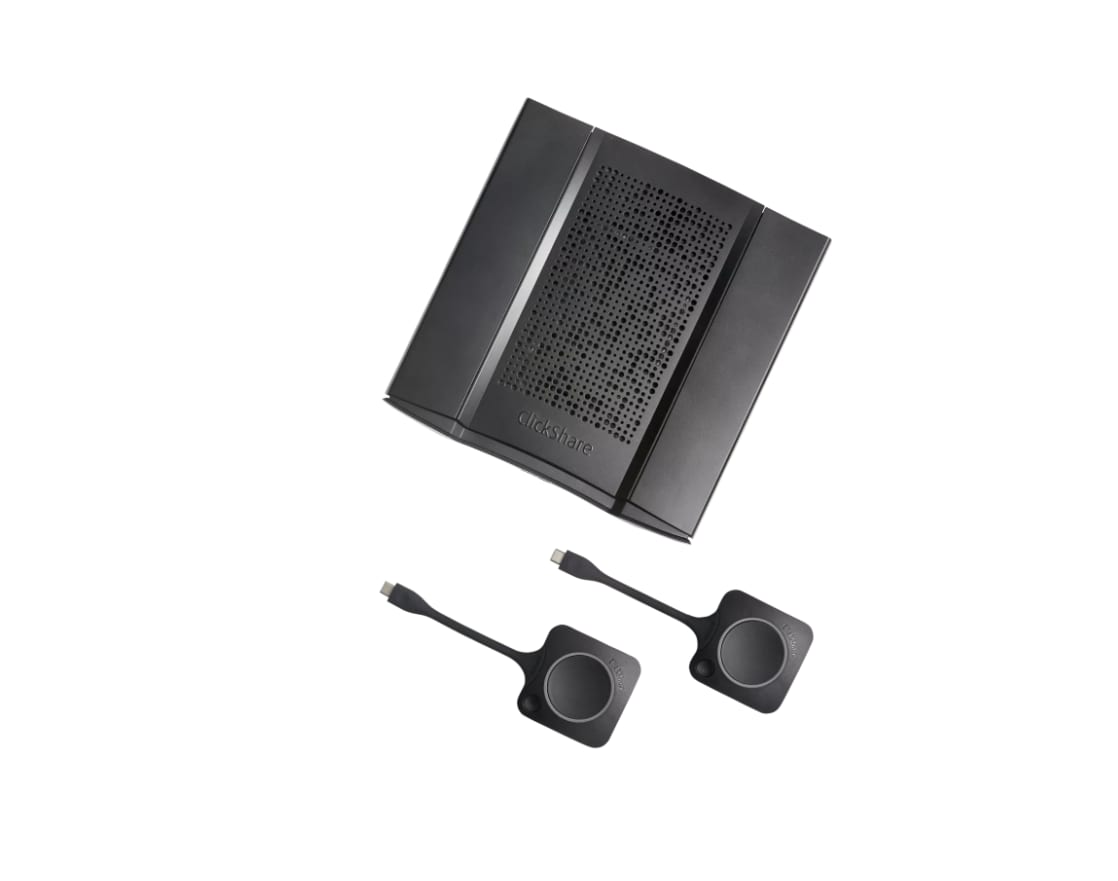

ClickShare Base Unit dimensions
- Dimensions (HxWxD)
- 39mm x 200mm x 202mm
- Power supply
- Standard 110/220 V AC plug
- Power consumption
- Operational: 50W (max)
Standby: <8W (networked standby), < 0.5W (deep standby mode)
- Weight
- 900 gr
General specifications
- Operating system
- Windows 10 or higher macOS 11 (BigSur) and higher
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)
- System requirements
- For a smooth experience with Microsoft Teams or Zoom
Minimum: Intel i3 dual-core processor / 8GB RAM / OS : Windows 10 latest build or Mojave latest build
Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest build
- Video outputs
- 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b
- Video inputs
- 1920×1080 @30Hz. HDMI 1.4b
- Audio output
- USB, SPDIF, jack, HDMI
- Connections
- 1x Ethernet LAN 1Gbit
1x USB-C 2.0 (back); 2x USB-A 2.0 (back); 1x USB -A 2.0 (front)
Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
- ClickShare Buttons
- 2
- ClickShare App
- Desktop & Mobile
- Native protocols
- Airplay, Google Cast, Miracast
- Maximum number of simultaneous connections (with Buttons and/or App)
- 32
- Noise Level
- Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
- Authentication protocol
- WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
- Wireless transmission protocol
- IEEE 802.11 a/g/n/ac and IEEE 802.15.1
- Reach
- Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)
- Frequency band
- 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
- Temperature range
- Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
- Humidity
- Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
- Anti-theft system
- Kensington lock
- Certifications
- FCC/CE
- Touch screen support & Interactivity
- Yes
- Wireless conferencing
- via App or Button
- Local view
- High quality
- Network connection
- LAN & WiFi (dual)
- Management and reporting
- Yes
- Warranty
- 1 year standard. 5 years coverage via SmartCare
