Rayon R110TC – DGRC Mono channel Column Loudspeaker
Max SPL: 92dB at 8m
Impedance: Low Z & 100V modes
Bandwidth: 120Hz-18kHz
Continuous Power: 150W
IP55
Paintable
5 years warranty
Simulation: https://activeaudio.fr/public-address/en/ray-on-series-simulation
Rayon R110TC – DGRC Mono channel Column Loudspeaker
Single-channel application of the patented DGRC technology (Digital & Geometric Radiation Control), the Ray-On column family comprises 4 models from 0.2 m to 2m in height. Thanks to DGRC technology, these models yield homogenous sound coverage and perfect speech intelligibility.
The elegant design of Ray-On loudspeakers with their finely perforated grid, the ability to dispose of all colors thanks to a paintable cast aluminium body, and the vertical installation of the columns inherent to the DGRC technology allow achieving optimal results in terms of aesthetics and integration.

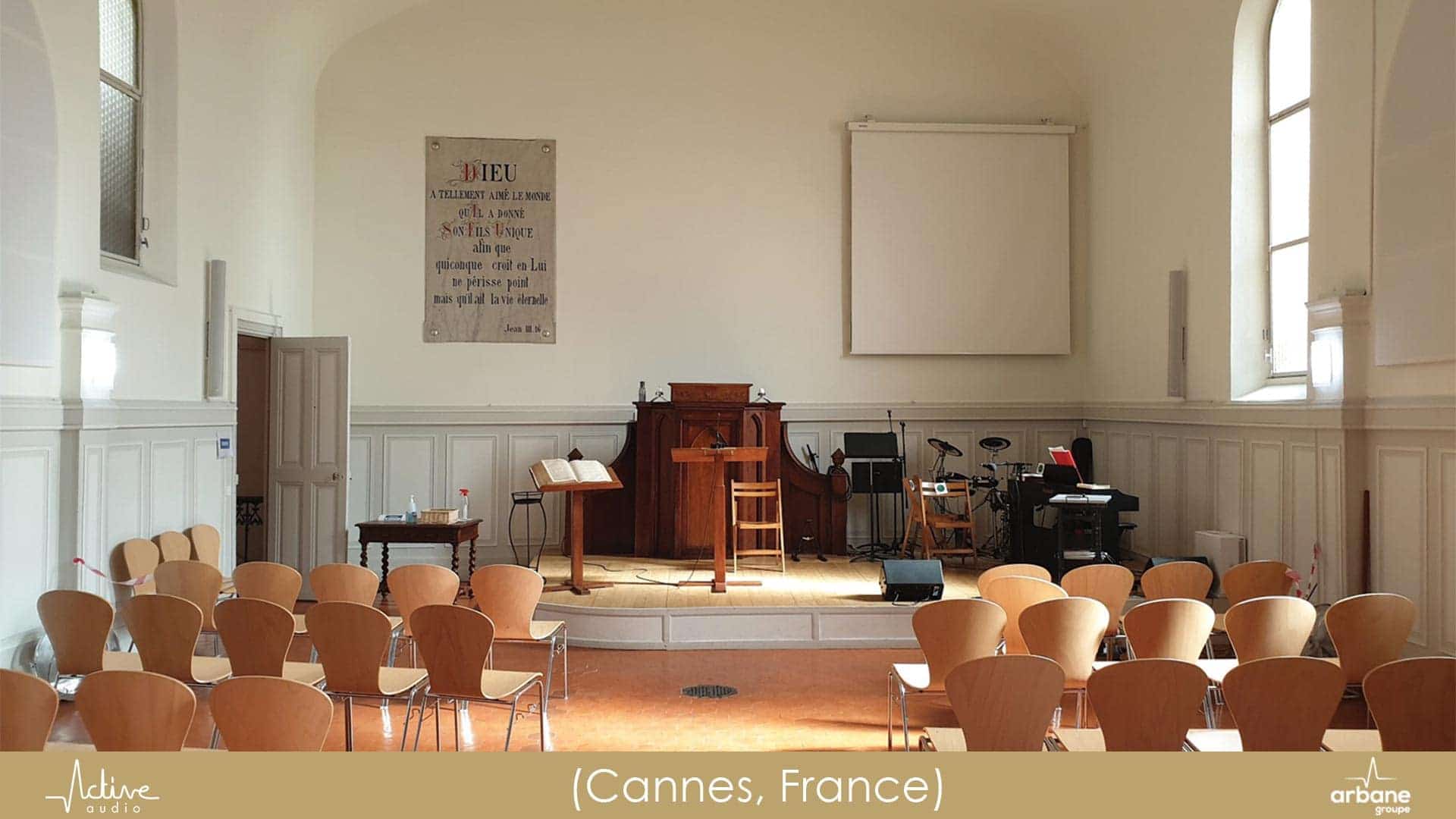

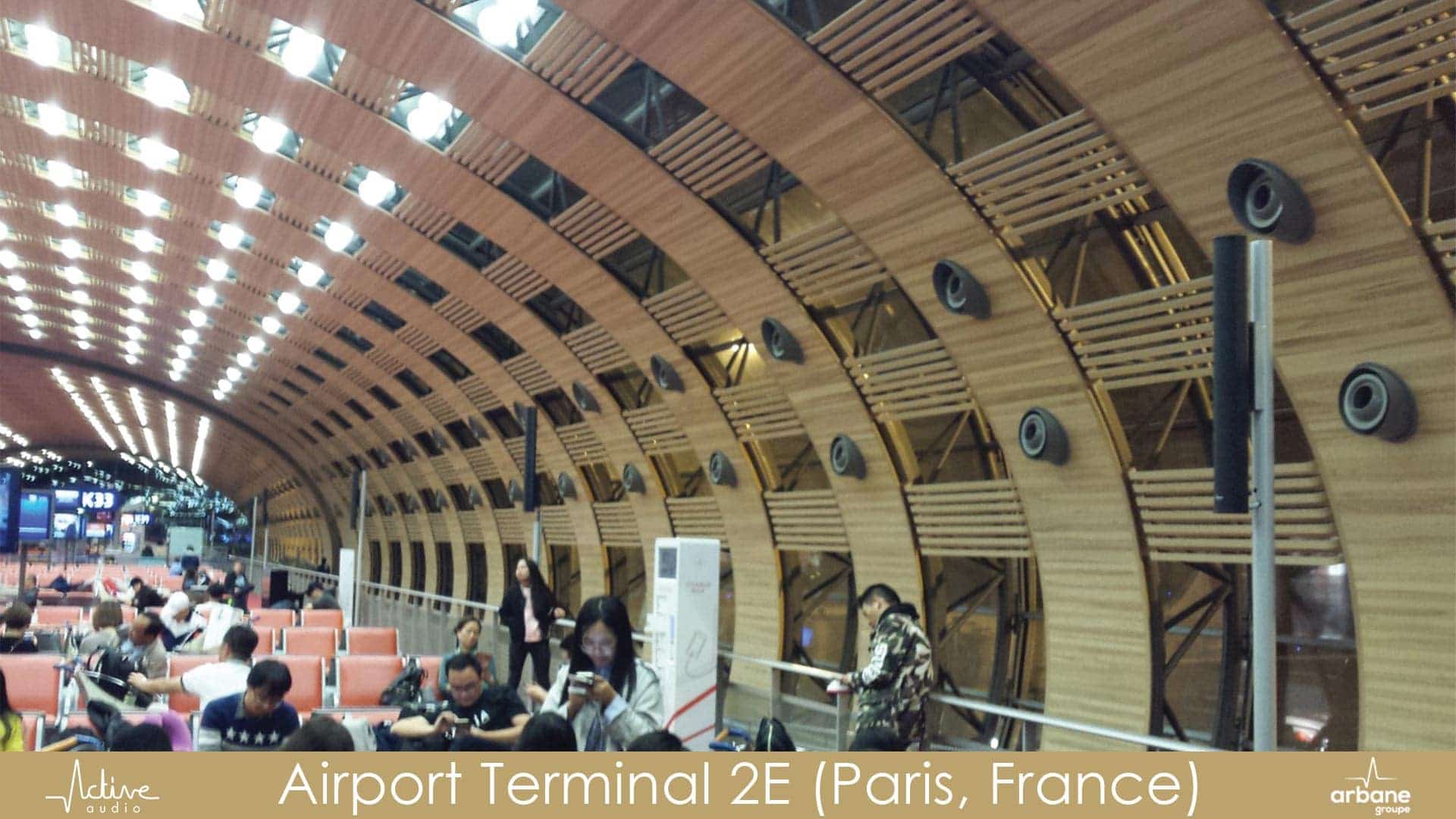

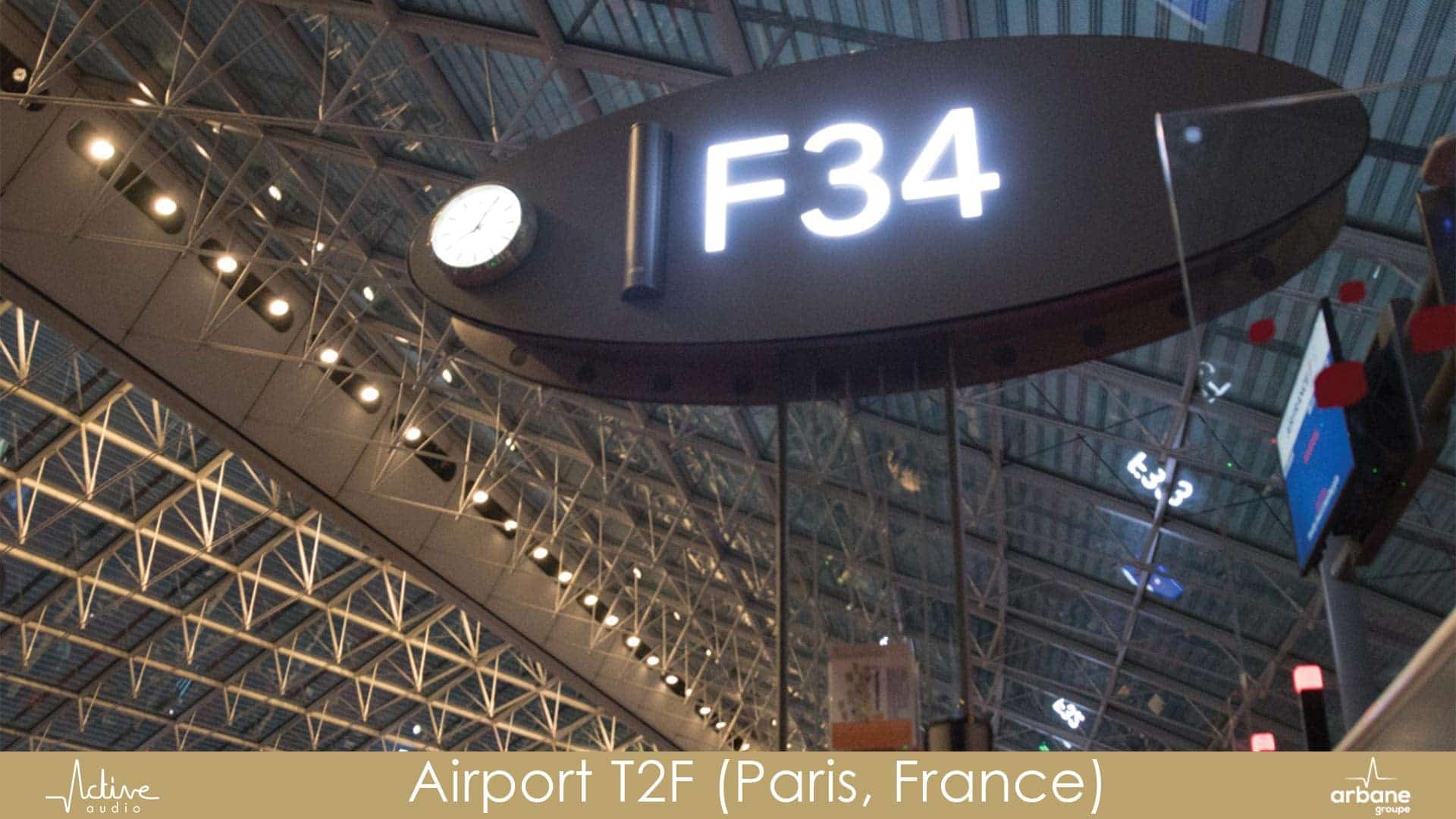

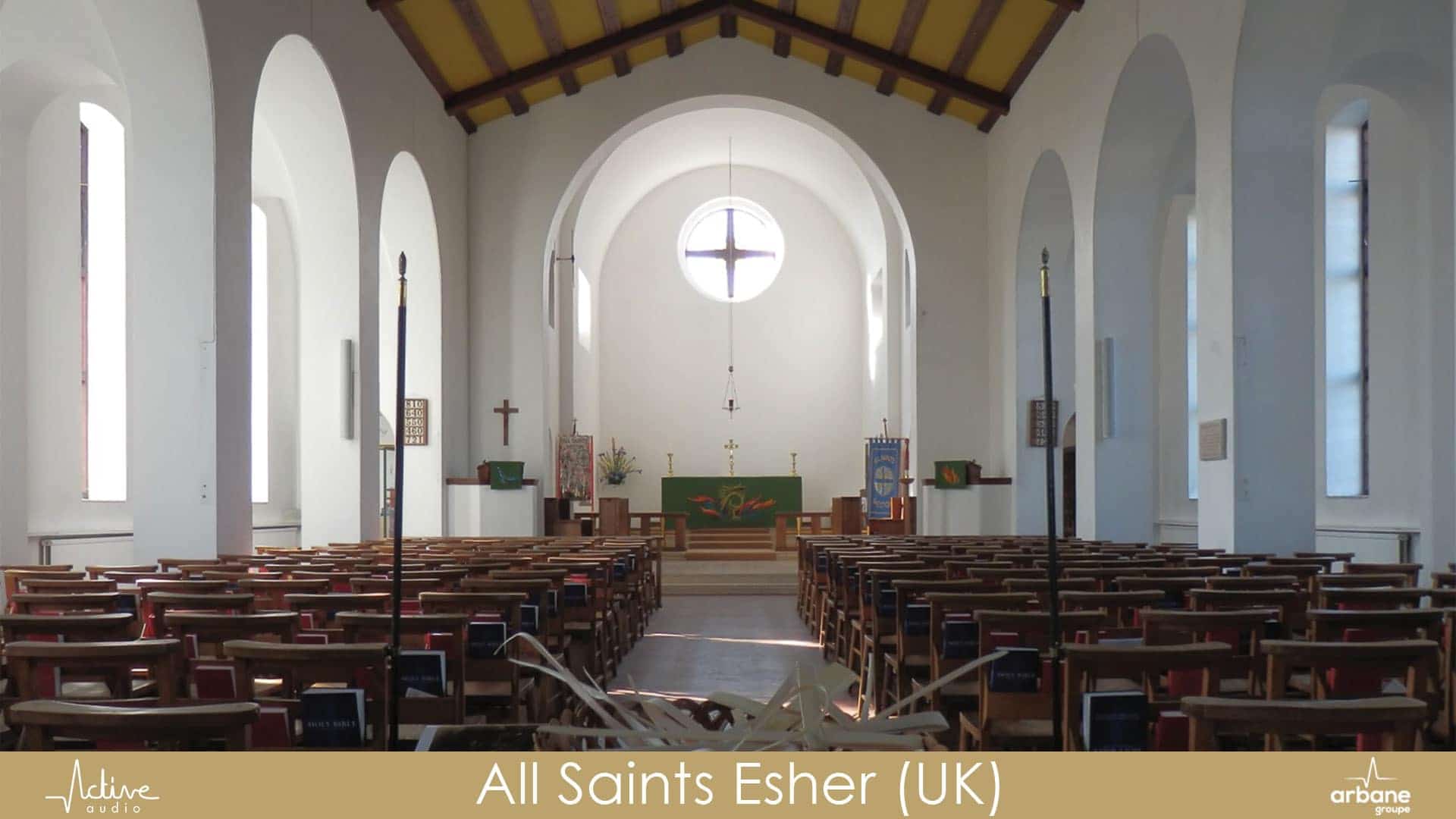

Indoor or outdoor use, compliance with EN 54-24 standard, and wide choice of possible connectivity (8Ω / 70V line / amplified) allow Ray-On column loudspeakers to meet the requirements of sound systems in houses of worship, conference rooms, airports, railway stations, shopping malls and recreational parks.

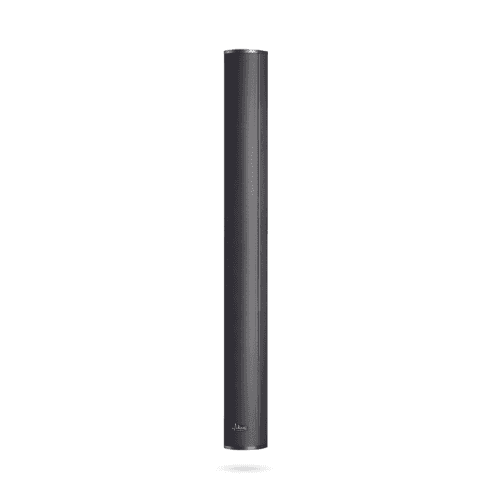

With a height of 110cm, the Ray-on R110 column has a nominal range of 20m for a continuous power of 150W. Its characteristics are perfect for medium-range venues or in distributed sound reinforcement system in large spaces. Its nominal installation height of 2,2m allows a safety set up in public places.
With a similar height and characteristics Ray-on R110 exists in amplified version with DANTE input under the reference Ray-on R110 +.
