HDMI in HD recorder/streamer save to USB/SD, stream to IP (Avonic)

$1,669.00

Due to high demand stock is limited and there may be shipping delays (Please call us to check)

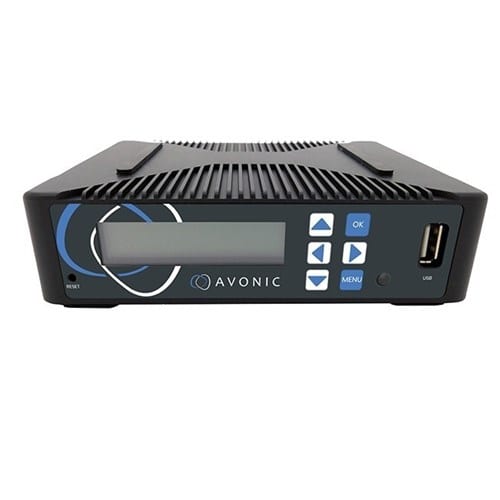

Recorder & Encoder with HDMI & SDI input

The Avonic AV-REC200 is the ideal standalone USB and SD Card recorder and web/streaming device. Users can simply connect an HDMI or SD/HD-SDI input and in a few simple steps, they will be streaming and/or recording. With support for UDP/HLS/RTMP/RTSP live output and USB/SD card recording the REC200 it enables corporate streaming, live streaming to various platforms and live high bitrate full HD 1080P60 recording.

A simple to use webinterface and IP control enable ease of use and full integration with 3rd party control systems.

SKU: AO-REC200

Features

  • Inputs: HDMI, 3G-SDI
  • Outputs: HDMI Out, USB storage, SD-card storage, RTSP via RJ45
  • High Definition input resolutions up to 1080p60
  • Live streaming to various platforms inlcuding Facebook Live and Youtube
  • H.264, H.265 encoding
  • Front panel screen with status, setup and control capabilities
  • Live Meeting Broadcasts
  • Logo overlay
  • full ip control via webinterface
  • H.264/ H.265 video coding

Specifications

  • Input: 1x HDMI, 1x 3G-SDI
  • Output: 1x USB2.0
  • Output Formats: 1920×1080, 1680×1200, 1600×900, 1440×1050, 1440×900, 1360×768, 1280×1024, 1280×720, 1280×800, 1280×768, 1024×768, 1024×576, 960×540, 850×480, 800×600, 720×576, 720×540, 720×480, 720×404, 704×576, 640×480, 640×360, 480×270, Automatic 20~60fps
  • Input Formats: up to 1080p60
  • Audio: MPEG-1 Layer II, AAC, AC3, EAC3 (Dolby Digital Plus)
  • Video Bitrate: 0.6 ~ 20 Mbps
  • Video Resolution: 1080×1920
  • Video Frame Rate: max 60fps
  • Audio Bitrate: 32~384 kbps

Streaming output

  • Protocols: UDP, RTSP, RTMP, RTMPS, HLS
  • Platforms: Facebook Live, Youtube and other platforms supporting the protocols above
  • Video Coding Standard: H.264 BP/ MP/ HP – H.265 MP
  • Max. resolution stream: 1920x1080p60

General specifications

  • Input voltage: DC12V1A
  • Power consumption: 9W
  • Power supply: 12V1A
  • Power connector: EIAJ-3 – Phimore 275 plug
  • Operating temperature: 10°C ~ 40°C
  • Storage temperature: -20°C ~ 60°C
  • Operating humidity: 20% ~ 90% RH (non-condensation)
  • Colour: Black
  • Dimensions product: 144 x118 x 38mm
  • Weight product: 0.300 kg
  • Dimensions box: 245mm x 175mm x 62mm
  • Weight box: 0.750 kg
  • Included: AV-REC200, AV-PSU200
Share this product

Additional information

Weight 0.75 kg
Dimensions 24.5 × 17.5 × 6.2 cm
