Lenovo Think Smart Hub Conferencing Device

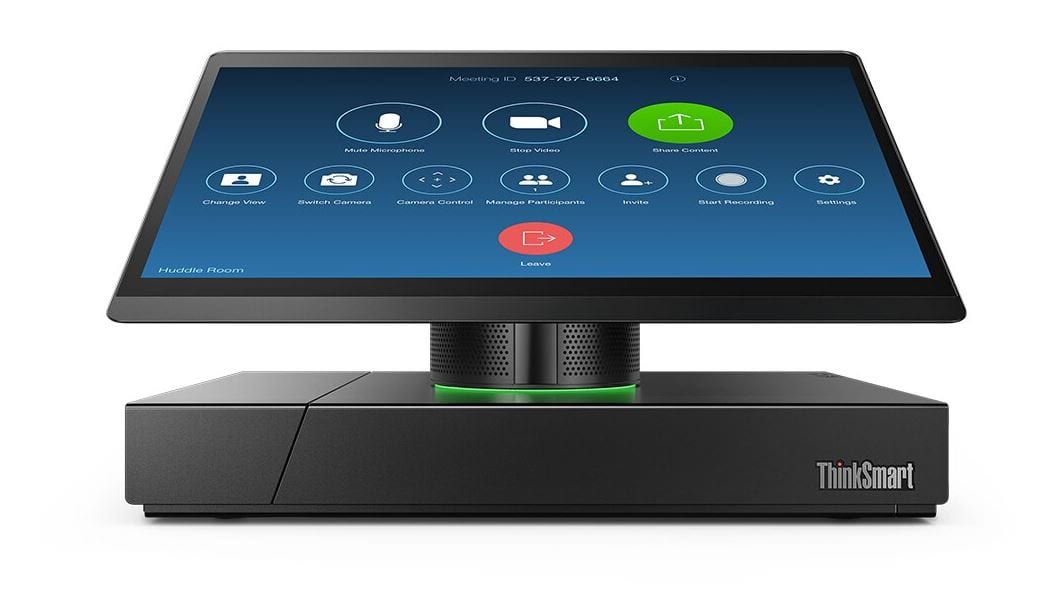

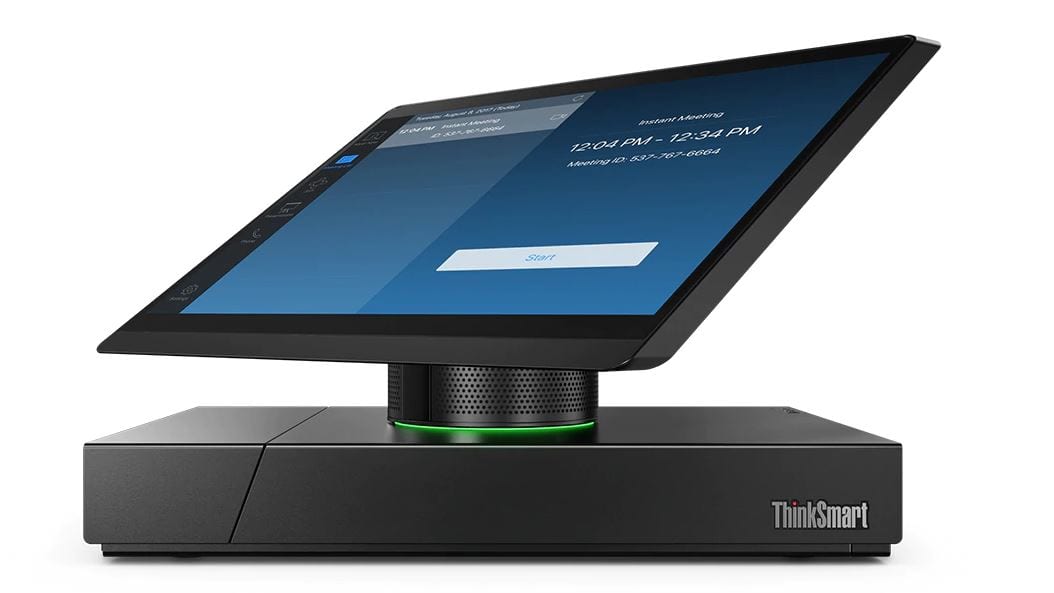

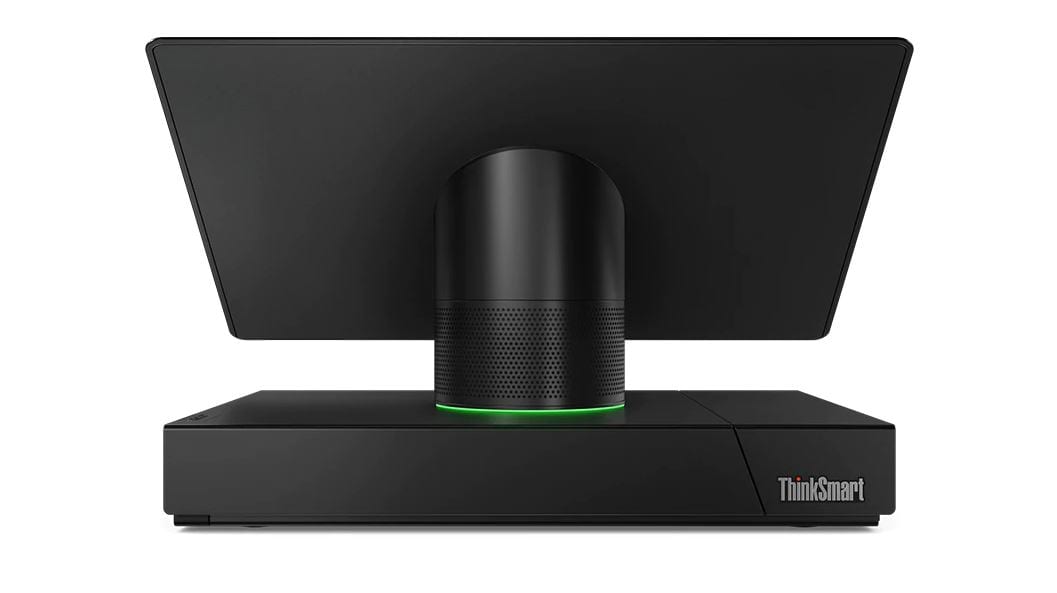

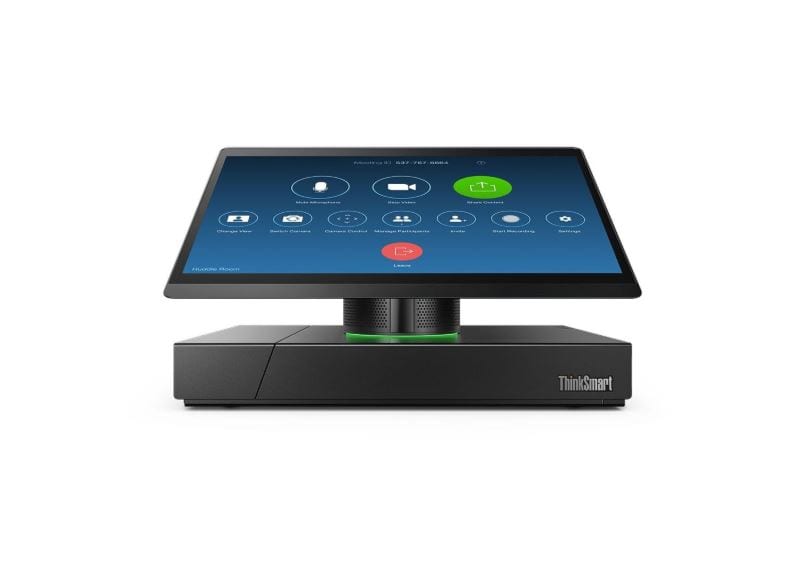

Lenovo ThinkSmart Hub 500

The smarter way to collaborate

Say hello to ThinkSmart Hub 500. Easy to deploy and use, this all-in-one, purpose-built Skype Room Systems device is the key to more efficient meetings. Start on time, every time with one tap of your finger. Hear what everyone has to say, loud and clear. And see the difference this makes to your productivity—and bottom line

Brand:

REQUEST QUOTE

Features

Because everyone’s time is valuable

Meetings are time consuming enough without trying to get the technology to work properly. The average delay is around 10 minutes, but with the ThinkSmart Hub 500, you can avoid costly late starts. As audio and video is already connected, simply hit one button and everyone can begin collaborating right away.

A better way for teams to work together

A key feature of the ThinkSmart Hub 500 is its eye-catching anti-glare, anti-smudge display. Rotatable through 360°, anyone within arm reach can take and give control instantly, enabling meetings to run more smoothly—and more fairly. There’s also a 3-colour LED ring that lets everyone in the room know the status of the call.

Designed to simplify meetings, worldwide

Whether you’re a host or attendee, the ThinkSmart Hub 500 will make your life easier. Designed with small to medium-sized conference rooms in mind, it’s available in 180 countries. That way, everyone in your organisation will be familiar with the system wherever your business takes them.

With enhanced security and manageability features

When it comes to security and practicality, the ThinkSmart Hub 500 has it covered. Windows 10 IoT Enterprise provides intelligent enterprise-grade protection, while the Intel vPro processor helps you to maintain remote devices, and the built-in Skype Room Systems app has a universal lockdown feature. Skype for Business is a universal locked-down app. In addition, an innovative cable management door secures physical ports and prevents cables being accidentally disconnected.

Specifications

Tech Specs

Processor
7th Gen Intel® Core™ i5-7500T Processor (6M Cache, 2.7 GHz, 3.3 GHz max), vPro™
Preload
  • OS: Windows 10 IoT Enterprise CBB X64 (RS3)
  • App: Microsoft Skype Room Systems App
Memory
2 x 4GB, DDR4-2400, 2 x 260-pin SO-DIMM sockets, dual-channel capable
Storage
128GB M.2 SSD / PCIe NVMe
Optical drive
None
Graphics
Intel HD Graphics 630
Display
  • 11.6″ FHD (1920×1080), wide viewing angle, anti-glare, smudge resistant, 300 nits, 800:1 contrast ratio, 10-point touch
  • 360° rotational display
Sensor
  • IR presence/motion sensor
  • Automatically dim or brighten display
  • Detection angle: +/- 45° from display
  • Detenction distance: 3 m at minimum
LED indicators
  • 360° LED ring on hinge neck, indicates Skype status for all users in the room
  • Power LED on power button
Chipset
Intel Q270 Chipset
Dimensions (W x D x H)
193.25 x 278.9 x 178.45 mm
Weight
Starting from 2.5 kg
Power Supply
90W, autosensing, 88% efficiency
Audio support
Dual 4W speakers, 2 omnidirectional microphones for 360° audio capture
Ethernet
Gigabit ethernet, Intel Ethernet Connection L219-LM, Wake on LAN®
Wireless LAN
Intel Dual Band Wireless-AC 8265, Wi-Fi 2×2 802.11ac + Bluetooth® 4.2, Intel vPro technology support
Wireless WAN
None
NFC
None
Manageability
Intel Active Management Technology 11.0, Intel vPro technology
Security chip
TPM 2.0, TCG certified
Ports
  • 4 x USB 3.0
  • 2 x HDMI-out
  • 1 x HDMI-in
  • 1 x ethernet (RJ45)
  • 1 x combo audio/microphone jack
Certification
Skype for Business Group Certified
